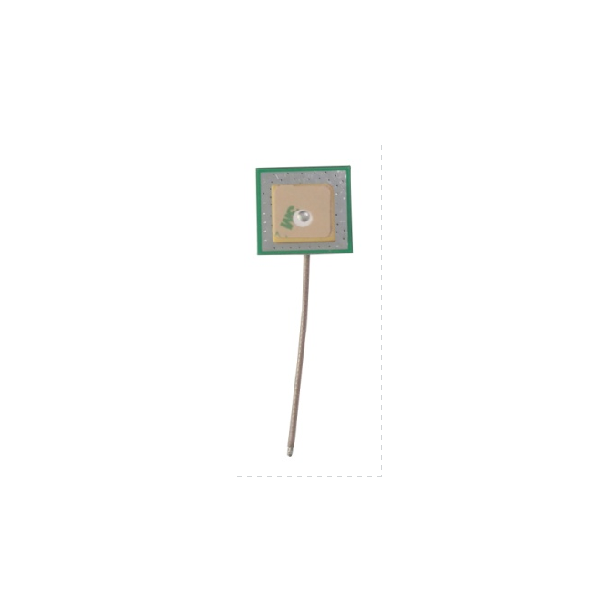

The 2 dBi Circular Polarized UHF RFID Ceramic Antenna is a compact antenna designed for UHF RFID applications operating at 915 MHz and 866.5 MHz. Its circular polarization helps maintain reliable tag communication when RFID tags are positioned at different angles, making it suitable for applications where tag orientation may vary.
With an overall antenna size of just 28 × 28 mm and a compact 18 × 18 × 4 mm ceramic antenna element, this design is well suited for RFID readers, embedded RFID devices, smart equipment, access control systems, asset tracking devices, and other space-constrained applications.
The antenna provides a gain of 2 dBi ±1 dBi, a 50 Ω impedance, and an axial ratio of ≤5 dB. PCB and ceramic construction offers a compact and practical solution for integrating UHF RFID functionality into electronic equipment.
Various terminal options and SMA connectors are available to support different installation and connection requirements. With an operating temperature range of -25°C to 75°C, the antenna can be used in a wide range of indoor and commercial RFID environments.
Product Specifications:
| Product Name |
2 dBi Circular Polarized UHF RFID Ceramic Antenna |
| Frequency |
915 MHz / 866.5 MHz |
| Ceramic Antenna Size |
18 × 18 × 4 mm |
| Overall Antenna Size |
28 × 28 mm |
| Gain |
2 dBi ±1 dBi |
| Polarization |
Circular Polarization |
| Axial Ratio |
≤5 dB |
| Impedance |
50 Ω |
| Connector |
Various terminals and SMA connectors |
| Radome / Antenna Material |
PCB + Ceramic |
| Operating Temperature |
-25°C to 75°C |
Key Features:
Circular polarization for more flexible RFID tag orientation
2 dBi gain for compact UHF RFID applications
Supports 915 MHz and 866.5 MHz frequency bands
Compact 28 × 28 mm overall antenna size
Ceramic + PCB construction for embedded applications
50 Ω impedance for compatibility with common RFID reader systems
≤5 dB axial ratio for circularly polarized operation
Available with SMA connectors or various terminal configurations
Operating temperature from -25°C to 75°C
Suitable Applications:
This compact UHF RFID ceramic antenna can be considered for:
Embedded UHF RFID readers
RFID asset tracking devices
RFID access control systems
Smart cabinets and lockers
Industrial RFID equipment
Inventory tracking devices
RFID handheld or portable equipment
Smart retail equipment
Embedded identification systems
Compact IoT and RFID devices
