The 15dBi High Gain Panel Antenna is designed for directional wireless communication and coverage enhancement in the 806-960MHz frequency band. Featuring vertical polarization and a 50Ω impedance, this antenna provides focused signal coverage for a variety of fixed wireless communication systems.
With a horizontal beamwidth of 30° and a vertical beamwidth of 70°, the antenna is suitable for applications requiring directional coverage. Its maximum input power of 100W and VSWR of ≤1.5 support reliable RF performance when used with compatible radio equipment.

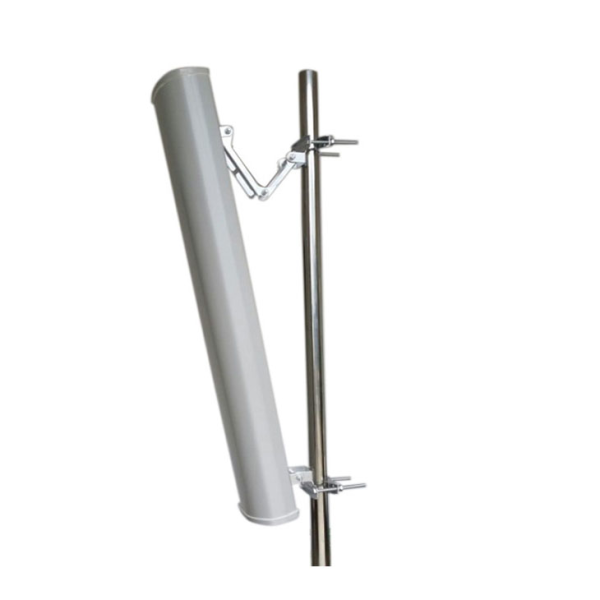

The antenna features a PVC radome in gray, an N-type connector, and a pole-mounting structure compatible with pole diameters of 40-100mm. With an IP65 protection rating and a maximum wind resistance specification of 50m/s, it is designed for demanding outdoor installation environments.
Key Features：
-
High Gain: 15dBi gain for directional wireless coverage.
-
Wide Frequency Range: Operates from 806MHz to 960MHz.
-
Vertical Polarization: Designed for vertically polarized RF systems.
-
Directional Coverage: 30° horizontal and 70° vertical beamwidth.
-
Low VSWR: VSWR of ≤1.5 for efficient antenna-system matching.
-
High Power Handling: Maximum input power of 100W.
-
N-Type Connector: 50Ω RF interface for compatible communication equipment.
-
Outdoor Protection: IP65-rated enclosure.
-
Durable Construction: Gray PVC radome.
-
Flexible Pole Mounting: Compatible with poles measuring 40-100mm in diameter.
Product Applications
This high-gain panel antenna is suitable for a range of wireless communication and infrastructure applications, including:
-
Base station coverage and wireless network deployment
-
Warehouse wireless communication systems
-
Intelligent transportation systems (ITS)
-
Parking lot and parking management systems
-
Fixed wireless communication installations operating within the supported frequency band
Installation and Compatibility
The antenna is designed for pole mounting using compatible mounting hardware. Before installation, verify that the antenna's operating frequency, polarization, connector interface, impedance, and RF power rating match the connected radio equipment.
For outdoor installations, use appropriate mounting hardware, properly rated RF cables, and suitable grounding and lightning protection measures in accordance with local electrical and RF installation requirements.
Why Choose This Antenna?
With its 15dBi gain, directional radiation pattern, outdoor-rated enclosure, and practical pole-mounting design, this panel antenna provides a solution for wireless coverage projects requiring a directional antenna in the 806-960MHz band. It is suitable for system integrators, wireless equipment distributors, and infrastructure contractors seeking an antenna for compatible communication systems.
Technical Data
15dBi High Gain Panel Antenna
| Electrical specifications |
| Frequency Range |
806-960 MHz |
| Antenna Gain |
15 dBi |
| Horizontal Beamwidth |
30° |
| Vertical Beamwidth |
70° |
| Polarization |
Vertical |
| VSWR |
≤ 1.5 |
| Front-to-Back Ratio |
≥ 24 dB* |
| Input Impedance |
50 Ω |
| Maximum Input Power |
100 W |
| Lightning Protection |
DC Grounded |
| Connector Type |
N-Type |
| Mechanical indicators |
| Antenna Dimensions |
1200 × 280 × 125 mm |
| Net Weight |
8 kg |
| Package Dimensions |
125 × 34.5 × 22 cm |
| Gross Weight |
9.3 kg |
| Radome Material |
PVC |
| Radome Color |
Gray |
| Mounting Pole Diameter |
40-100 mm |
| Maximum Wind Resistance |
50 m/s |
| Operating Temperature |
-20°C to +60°C |
| Ingress Protection Rating |
IP65 |
